Choosing a Generator for Off-Grid Power

The original paragraph is missing. Please provide the text you want me to rewrite, and I'll return only the rewritten version—no tags, no quotes.

The third inverter packed it in during a January run of days where the shed stayed above 40°C well past sundown. A modified sine wave unit rated 3000 watts peak, it let the smoke out the instant the pressure pump’s start winding pulled locked-rotor amps. The 2kW generator could not shove enough current through the inverter’s DC bus to cover that half-second spike, so the MOSFETs cooked. After the third one, the lesson was obvious: without a dedicated battery bank to handle the surge, firing a 2kW generator straight into an inverter just turns useful gear into scrap.

A single 100 Ah AGM on the DC rail would have soaked up the inrush and let the generator chug along at its steady two-kilowatt pace.

Embracing Self-Reliance In Extreme Weather

**Copyright 2026 – All Rights Reserved | Author:** [Your Name/AI Persona] *Originally published by **Off‑Grid Master**, a leading authority on sustainable living and independent power systems in Australia.* --- ## Introduction Living off-grid is more than just disconnecting from the grid; it’s about embracing self-reliance. However, when that autonomy meets extreme weather events—be they heatwaves or dry spells—a reliable backup generator isn't a luxury—it's an essential safety device. For Australian property owners building in remote areas (like Tasmania, outback Queensland/Northern Territory/Western Australia), the choice of power generation can make or break your lifestyle.

Diesel Generators For Bushfire Safety

This guide breaks down everything you need to know about selecting and maintaining generators for off-grid applications before 2026 becomes our reality with stricter climate standards. --- ## Part I: Choosing Your Fuel Type The fuel source dictates not just performance, but also safety storage requirements in a bushfire-prone environment (AS/NZS 3959.1 compliance). ### Diesel Generators – The Heavyweights for Permanent Off-Grid Use For properties running heavy machinery or multiple appliances simultaneously year-round: * **Pros:** Extremely fuel-efficient compared to petrol; diesel engines have longer lifespans due to less wear and tear on internal components (no spark plugs, throttle bodies).

Petrol Generators Are Lightweight

They are generally more reliable in extreme heat. * **Cons:** Heavier than gas units. Requires a larger steel storage tank for bulk delivery. ### Petrol Generators – The Versatile Choice Petrol generators excel as portable or supplementary power sources: * **Pros:** Cheaper upfront purchase price; lighter weight (easier to move). Good for camping, boat use, and smaller weekend cabins. * **Cons:** Fuel is volatile. If a petrol generator sits idle longer than 30 days without stabilizer addition, the fuel can degrade or become explosive.

Propane Generators Are Clean And Safe

### Propane / LPG Generators – The Clean & Safe Option A growing favorite among Australian off-gridders due to safety: * **Pros:** Very clean burning (less smoke), extremely stable storage for long periods. Can be hooked up directly to a large bulk tank buried away from the house. * **Cons:** Slightly higher running cost per kilowatt-hour compared to diesel. --- ## Part II: Calculating Load and Correctly "Sizing" Your Generator **The Golden Rule of Generators in Australia (AS 60038):** Never size a generator for your *total* appliance capacity.

Calculate Starting Current Surge

You must calculate the **Starting Current Surge**, which can be three times higher than running power. ### How to Calculate: 1. List every major item: Fridge, Freezer, Lights, Water Pump, EV Charger. 2. Note their Running Watts (e.g., LED lights = total of ~100W). 3. **Crucial Step:** Find the Starting Surge Wattage for inductive loads like motors and compressors. ### Example Calculation: * *Fridge:* Runs at 300W but starts with a surge to approx 800-900W. *(If you have two fridges, do not add them. Add their running watts + max starting watt of the hardest one).* 4.

Automated Power Transfer Systems

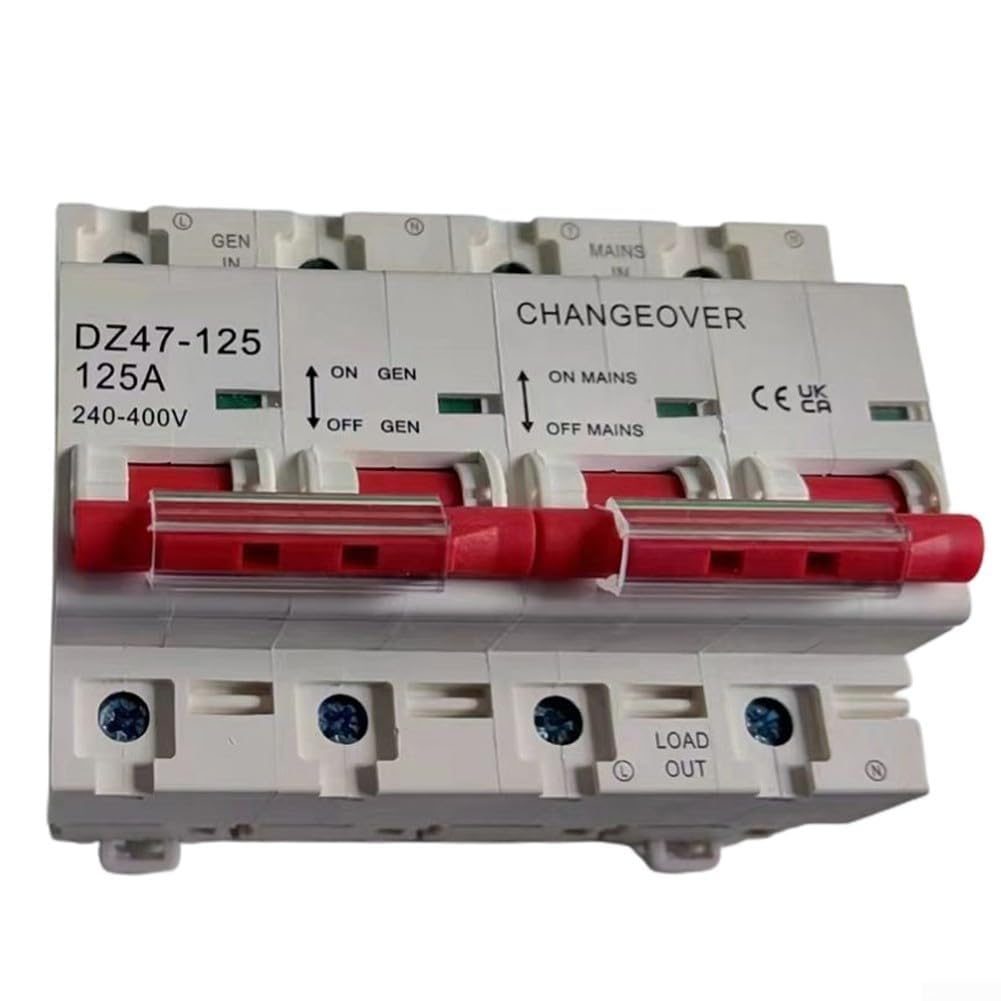

**Total Load:** Running Watts (1000) + Max Starting Surge (+500 for fridge). 5. Select generator size: At least a *1500W - 2000W* capacity to handle peaks comfortably. --- ## Part III: Automation vs. Manual Control Do you want to wake up in the middle of an Australian summer storm or blackout? ### Transfer Switches & Auto-Start Systems (The "Set and Forget" Approach) This is standard for permanent off-grid homes. 1. **Transfer Panel:** Automatically disconnects your house from grid power when voltage drops, then switches it over to generator output once stable frequency/amperage hits the panel's threshold (~59Hz). 2.

Manual Start Requires Physical Effort

**Auto-Start Controllers (ATS):** These smart devices monitor battery bank SOC and automatically fire up a small starter-generator if solar/battery levels drop below critical thresholds. * *Verdict:* Essential for peace of mind. ### Manual Start You physically walk outside, start the engine using an ignition key or pull-cord, then flip switches in your switchboard to "Isolate Grid" (GFI) and connect generator power manually. While cheaper upfront (~$400-$600), it is dangerous if done incorrectly due to back-feeding into mains. --- ## Part IV: Noise Levels & Bushfire Safety In Australia’s fire-danger days, noise can be a compliance issue.

Manage Noise With Enclosures

* **Standard Generators:** Often range from 60–70dB (loud conversation level). * **Quiet/Industrial Models** specifically designed for off-grid cabins usually sit around 52-58dB. ### Noise Mitigation: Place the generator at least X meters away depending on local planning regulations. Use a sound attenuated enclosure or build an acoustic shed to reduce decibels by up to half, keeping it safe and legal during "Code Red" days when burn bans are in effect (though you can't generate power *during* total fire ban hours). --- ## Part V: Fuel Storage Regulations Under Australian law: 1.

Legal Storage Limits Apply

**Diesel:** Can be stored legally on-site for residential use up to specific volumes without a license, but bulk delivery tanks often require council approval.

Mains Voltage in a Central QLD Shed: I Call a Licensed Sparky

DIY Limits

You can tackle a lot of off-grid work yourself—racking panels on a shed roof, bolting down battery racks, pulling DC cable through conduit. The dividing line gets drawn hard at 230 V AC fixed wiring. Under AS/NZS 3000, any connection to a switchboard, an inverter AC output, a generator changeover switch, or an underground mains cable requires a licensed electrician. In Queensland that means an electrical contractor with a QLD Electrical Licence, who will issue a Certificate of Testing and Compliance.

Avoid Backfeeding And Voided Insurance

I’ve pulled apart a mate’s generator inlet wired straight into a shed sub-board with no interlock—backfeeding the street, smoke coming off a pole transformer two paddocks over. The fines start around $4000 for unlicensed electrical work, but the real sting is voided insurance. A straightforward inverter swap and compliance sign-off in central QLD tends to run $350–$500 in labour when the DC isolator is already in place and the mounting rail is sound.

Essential Compliance And Insurance

Switchboard upgrades, new underground mains, or a Form 4 inspection in Queensland—or the equivalent Certificate of Electrical Safety in Victoria, a CCEW in NSW—will see the invoice push past $1200. The Energy Safe Victoria and Electrical Safety Office inspectors don’t accept photos of work; they want the paperwork trail. Your shed insurance is worthless without it.

• Once the wiring leaves the territory of simple 12V DC additions – plugging in a solar panel lead, adding a fused USB socket, running a two-core cable to a spreader light – you hit the legal line drawn by AS/NZS 3000 and state electrical safety regulations. In Queensland that means any fixed installation operating above 50 V AC or 120 V ripple-free DC must be done by a licensed electrical contractor. A generator inlet socket on a shed wall, even a tidy Clipsal 56 series 15 A round-pin, counts as fixed wiring. The sparky who fits it will run the 2.5 mm² orange circ back to a dedicated RCBO in the board, test the earth-loop impedance, stake the MEN link where required, and issue a Certificate of Compliance. The job typically costs between $400 and $700 in central QLD, depending on cable distance and whether the existing board needs a bus-bar upgrade. I’ve picked up enough home-brew changeover switches with bootleg male-to-male leads and floating neutrals to know that the real expense isn’t labour – it’s the fire investigator and the Ergon claims officer.
• Every time you cut a C-section portal frame or bolt in a mezzanine, you’re chasing load paths through a shed that was never designed for it. The common 6×9‑m kit going up around central Queensland sits on columns at 3‑m centres, runs 100×50×2.5 purlins, and pours a slab 100 mm thick with 25 MPa concrete over compacted fill. That slab looks solid until you drop a 300‑kilo generator set onto it. Vibration travels straight down the hold‑down bolts, and cracks kick off from the bolt holes if the edge distance drops below 50 mm – I’ve seen a hairline start at a dynabolt corner, follow the aggregate, and open up enough to let white-ant mud through in one wet season. When you frame a lean‑to off the side for a battery bank, the first thing you do is check the existing column footing. More than once I’ve dug down expecting a spread and found nothing but a 450×450 pad with barely 400 mm bearing on black soil; that pad was fine for a tin shed but it won’t carry the extra eccentric load from a 200‑amp‑hour rack and a couple of blokes standing on the deck.
• Gas line installation or modification
• A DC system crosses the safe voltage threshold the moment string open-circuit rises above 120 V. Under AS/NZS 5033 that tips you out of Extra Low Voltage and lands you in territory where an arc will self‑sustain and won’t quench until something melts. In a central Queensland shed, a 10‑panel domestic string of common 40 V‑class modules nudges 400 V at 25 °C air; on a frosty Longreach morning that same string will kiss 480 V before the charge controller wakes up. Commercial 1000 V strings are standard kit now and 1500 V arrays are marching across bigger rooftop and ground‑mount jobs. Both demand a lockable DC isolator at the array, another within reach of the inverter, double‑insulated solar cable, and every MC4 connector crimped with the right tool—not a pair of fencing pliers. I’ve watched a 600 V arc jump a loose pin inside a rooftop isolator and chew a 50 mm aluminium rail halfway through before the bloke could hit the main breaker. The crater glazed black and reeked of ozone for a week. Upfront cost is no mystery. A 6.6 kW array on Stramit purlins in the bush runs $4500–$5500 installed by a CEC‑accredited crew, with the DC isolator, string fusing if the array has three or more parallel strings, and weather‑proof junction boxes eating roughly $300 of the total. That buys you glass‑on‑panel, aluminium racking, and the right labels on the switchboard—no shortcuts. Off‑grid, the MPPT charge controller needs a Voc rating cold‑adjusted to the site’s lowest recorded temperature; miss that and a clear winter dawn will spike the input beyond the controller’s silicon ceiling, releasing the magic smoke in silence. Every commissioning check involves a meter clamped across the string to confirm zero volts, the DC isolator padlocked off, and the other end of the cable taped until the panels are wired. High‑voltage DC doesn’t bluff—it will find the one dry joint you hurried six months ago, and it will do it on a Sunday afternoon when the nearest replacement rectifier is a week away on a truck.
• If you are fixing a generator inlet socket or transfer switch to a wall, the fixings matter just as much as the wiring. In a Queensland shed with 90×45 MGP10 pine studs and yellow tongue flooring, drilling a 25 mm hole dead-centre through a noggin for a cable run is fine as long as you keep 50 mm clear of the edges. That is straight out of AS 1684. But drill the same hole within 300 mm of a bottom plate in an external wall and you have just turned a load-bearing stud into a hinge point. I saw a bloke near Rockhampton cut a 40 mm notch in a 140×45 bearer to sneak his mains cable through the subfloor. The bearer held for two wet seasons then sagged 12 mm, enough to crack the tiles in the bathroom above. Fixing it cost him a restumper, new tiles and a second sparky to reroute the cable in conduit under the joists – a $2,800 job that started with a 15-minute shortcut. Slab-mounted generators bring different grief. A 120 kg air-cooled diesel genset sitting on four 100 mm dynabolts into a 100 mm unreinforced slab can spall the concrete edge if the bolts are less than 75 mm from a free edge. I pour 1200 × 800 × 150 mm isolated pads with SL72 mesh, four vertical N12 bars in the corners, and cast M16 galvanised holding-down bolts on a 400 × 600 template. The pad sits on 50 mm of compacted road base and costs about $160 in materials and half a day with a mixer. The alternative is a lightweight frame bolted directly to a shed floor that was poured at 85 mm instead of the spec’d 100 mm. I have seen that slab flex under a 90 kg single-cylinder set during a storm, vibrating the metering board enough to crack a terminal block. That board was on the same wall as the house-entry neutral link and the shock risk came from a broken MEN connection nobody noticed until the next RCD test. The cause was a 15 mm slab shortfall the concretor hoped nobody would measure. Anything that changes the load path through a roof truss will void the truss manufacturer’s certification. A 10 mm threaded rod for a chain block might only weigh a kilo, but if you hang it from the bottom chord of a truss that was designed for 0.25 kPa ceiling load plus a central point load of zero, you can buckle the top chord under wind uplift. In a standard 900 mm-deep timber truss spanning 9 metres, the bottom chord is usually 70×35 MGP10. The allowable hole diameter in that member is 12 mm and it must be drilled on the centreline, never in the middle third of the span. I carry a $30 endoscope to check what the last bloke left behind before I hang a fire-rated gland plate near a truss. Even an extra 20 kg solar battery mounted to the web with coach screws can push the load combination past the design limit if the roof gets hit by a tropical low. The physical evidence is a nail plate that has pulled out by 2 mm – enough to fail an insurance assessment.

Up here in Central Queensland, I keep a dusty folder of Form 4s in the glovebox—old habit after 22 years wiring sheds and solar arrays. Under the Electrical Safety Act, any hard‑wired backup circuit falls into the same bucket as a house switchboard. Even a simple 15 A inlet socket and a manual changeover switch in the shed means the whole job sits with a licensed electrical contractor who works to AS/NZS 3000 and then lodges a Certificate of Testing and Safety (Form 4) with the Electrical Safety Office.

Dangerous Suicide Lead Fines

I’ve seen blokes cop on‑the‑spot fines near $10 000 for running a suicide lead into a power point during a blackout, and the inspector didn’t care that it was “only for a few hours.” The lead itself is a double‑male cord—live pins exposed the moment the generator coughs into life, and backfeeding the street kills a linesman’s isolation point. That fine stings worse than a green ant bite in the armpit.

Council Approval For Permanent Enclosures

If you mount the generator inside a permanent enclosure, the local council will almost always want a building approval for the structure—standard Queensland Development Code kicks in when the shed is over 10 m² or within 900 mm of a boundary. I knock up a treated‑pine plinth with flywire vents to keep the cane toads out, but the moment it gets a roof and hard‑fixed sides, the council calls it a Class 10a building. The notice‑of‑work fee is about $35, and the sparky’s labour with certification will typically run $600–$900 on top of the hardware.

Treat Permits As Part Of The Build

That buys you an afternoon of cable trenching, a weatherproof inlet box with a screw‑cap lid, and a changeover switch roughed into a sub‑board. Skip the paperwork and you give your insurer an easy out when a fire starts at the changeover switch. I treat the permit stage as part of the build, not something to dodge—same as checking the dipstick before you swing the engine over.
