Pulling apart a wrecked Nissan Leaf for a solar battery bank is one of those ideas that reads sensibly on paper: traction-grade cells, plenty of capacity, and second-hand pricing well below retail lithium. The reality — and this is what the MyNissanLeaf forum thread started by user offpist on 4 September 2014 makes clear — is that the execution is fiddly and most of the engineering lives in the Battery Management System (BMS), the inverter matching, and the safety paperwork rather than in the cells themselves. This review covers what is actually involved, what the forum users observed, and where the hard edges are.
What "48V Used Leaf Pack" Actually Means
A 48V Nissan Leaf solar battery pack, as discussed across the DIY solar community and in the offpist forum thread, refers to a pack built from modules salvaged from a wrecked Leaf and reconfigured for stationary storage at a nominal voltage that pairs with common off-grid inverters. The packs themselves originate at much higher voltage in the vehicle; getting to a safe, BMS-managed 48V rail is the integrator's first job.
The key electrical fact carried across from established community documentation is that Nissan Leaf modules are arranged 2S2P (two cells in series, two in parallel) per module. That topology drives everything downstream: how you string modules, how the BMS measures cell voltages, and what your top-of-charge and bottom-of-discharge thresholds should be.
Two cell-chemistry points matter for Australian conditions, where sheds regularly push past 40 °C in summer:
- NMC chemistry is more thermally sensitive than LiFePO4. Charge acceptance, cycle life, and safety margins all degrade faster at elevated temperatures. Adequate enclosure ventilation and, ideally, a shaded or insulated location are non-negotiable.
- The voltage window differs from LiFePO4. A BMS that has been pre-programmed for LiFePO4's flat 3.2–3.65 V/cell range will mis-manage NMC cells. Configuring the BMS for the correct upper and lower voltage limits is a critical step specific to repurposed Leaf cells.
What the Forum Evidence Shows
The thread Use of Nissan Leaf battery in Solar installation, started by offpist on 4 September 2014, is the only verified primary source on a working Leaf-pack solar installation among the facts available. The verifiable observations are limited but useful:
- Charge behaviour observed: offpist reported the pack charging from 10% state-of-charge (SOC) in the morning to 80% SOC by 14:00, expecting full charge by roughly 16:00. This is consistent with the chemistry being solar-friendly at moderate charge rates, although the pack capacity in kWh is not stated in the source.
- Hands-off operation: offpist stated the pack charged automatically without human input, with the system expanding headroom — adjustable on the fly through the BMS — at both top and bottom of the SOC range. The inverter was programmed for seasonal variation, allowing deeper excursions in summer than in winter.
- Expansion intent: offpist indicated they were considering obtaining a second battery pack to expand capacity.
Other forum participants contributed useful, if incidental, facts:
- sub3marathonman noted that photovoltaic battery backup systems seen at a second home in Montana were typically lead-acid, and remarked that the absence of off-gassing and venting requirements with a Leaf pack would be a significant improvement.
- mikesus reported running SMA Sunny Boy 5000 and Sunny Boy 6000 inverters and chose not to opt for the grid-down outlet feature, reasoning that the feature requires solar input during outages, which is unlikely during the storm conditions that typically cause outages.
- viethoc referenced a San Francisco Craigslist listing for a wrecked 2013 Nissan Leaf with a "new" battery at an asking price of US$6,500.
- TrevorLarkum suggested Copart UK as a source for wrecked Leafs. Australian readers would substitute local salvage auctions (Pickles, Manheim, etc.), though the source does not verify Australian availability or pricing.
Capacity, State of Health, and What You're Actually Buying
The thread does not state the capacity of offpist's pack, and several commonly cited figures (such as a claimed ~24 kWh total with ~20 kWh usable) are flagged in community discussion as "from online reading" rather than manufacturer-verified and are not safe to repeat as fact here.
What is widely accepted across the broader EV-battery repurposing literature — and supported as a general principle in the facts retained from prior research — is that used EV batteries commonly retain 70–80% of their original capacity when they reach end-of-vehicle-life. For stationary solar storage where cycle stress is lower and depth-of-discharge tolerance is higher, that residual capacity is generally fit for purpose.
Two practical corollaries:
1. Match by measured capacity, not by sticker. A pack pulled from a crash-damaged vehicle may have perfectly healthy modules or may have modules with internal damage not visible externally. Individual module testing with a benchtop capacity tester (or at minimum a controlled charge/discharge cycle against a known load) is the only way to confirm state-of-health.
2. Cell matching matters more than module count. When you reconfigure to 48V, mismatched cells force the BMS to clamp the entire pack to the weakest module. The result is a battery that reports "100% charged" while several cells are still well below the knee voltage.
Build Requirements at a Glance
The following table summarises the core electrical and mechanical requirements for a 48V Leaf-pack solar storage build. Items are general for this topology; specific inverter, BMS, and breaker selections must be confirmed against your chosen equipment and local standards.
| Requirement | Notes |
|---|---|
| Cell topology per module | 2S2P (2 series, 2 parallel) |
| Cell chemistry | NMC — more thermally sensitive than LiFePO4 |
| BMS | Required; must be configured for NMC voltage window, not LiFePO4 presets |
| Voltage window | Set explicitly on the BMS; NMC limits differ from LiFePO4 |
| State-of-charge headroom | Configure both upper and lower limits; offpist reported adjusting on the fly |
| Inverter compatibility | Confirm DC voltage window covers the pack's full SOC range; some off-grid inverters assume 48V nominal LiFePO4 and will not accept NMC voltage curves without custom configuration |
| Overcurrent protection | DC-rated breaker or fuse sized to the inverter's max input current, mounted in a ventilated enclosure |
| Ventilation | Forced or passive airflow to manage cell temperature, particularly in CQ summers |
| Enclosure | Insulated or shaded location preferred; condensation and direct sun both problematic |
| Cable sizing | Sized for the full pack current at the lowest expected SOC voltage; voltage drop budgets tighter at higher currents |
| Standards | Install per AS/NZS 5139 (Battery installations) and AS/NZS 4777.2 where applicable |
Sourcing: Cost vs. Effort
The verified pricing datum is the San Francisco Craigslist listing referenced by viethoc: a wrecked 2013 Nissan Leaf with a "new" battery, asking US$6,500. That figure should be treated only as a 2014-vintage US benchmark. No Australian equivalent price, no shipping or import cost, no duty or compliance cost, and no verification of cell state-of-health is provided in the source material.
When comparing that figure against a new LiFePO4 48V rack-mount battery, the headline price difference can be substantial. The hidden costs to weight against it, all generic to this kind of build rather than verified in the source:
- BMS hardware and configuration time
- Enclosure, cabling, breakers, and ventilation
- Time to test and match individual modules
- Inverter reprogramming or replacement if the existing unit assumes LiFePO4
- Insurance implications for a non-standard battery installation
- Compliance with AS/NZS 5139 and any network or installation requirements applying in Queensland
In practice, the cost gap narrows quickly once the integration work is accounted for. For most households, the decision ends up being about time and risk appetite, not just dollars.
Safety: When to Call a Licensed Professional
This section is the most important one in the article.
A 48V Leaf pack is not dangerous in the same way a 400 V traction pack is, but it is absolutely capable of delivering lethal fault currents, and the underlying cell chemistry requires careful handling. The following items are non-negotiable for safe operation:
- A Battery Management System must be in place before the pack is connected to any load or charger. A BMS manages SOC limits and prevents over-charge and over-discharge, both of which can permanently damage NMC cells and create a thermal-runaway risk.
- The pack must be assessed for physical damage from the vehicle accident, individually tested for capacity and internal resistance, and matched across the string before assembly.
- A DC-rated overcurrent protection device (breaker or fuse) must be installed in the positive conductor between the pack and the inverter, sized to the inverter's maximum input current.
- Ventilation must keep cell temperatures within the manufacturer's specified range. In the CQ climate, this typically means forced airflow and a shaded or insulated enclosure.
- High-voltage DC work, including the inverter side, the PV array side, and the battery-to-inverter cabling, must be performed by a licensed electrical worker in accordance with local Queensland regulations and the current Australian Standards.
- Insurance: check with your insurer before commissioning. Non-standard battery banks can affect cover.
When to call a licensed professional
- Any time you are connecting the pack to the AC side of the inverter, the switchboard, or the PV array.
- Any time the BMS is being configured or firmware-updated if you are not trained to do so.
- If the pack has been dropped, punctured, exposed to water ingress, or shows any swelling, voltage deviation, or unexpected heat during testing.
- For any fault condition involving tripped protection, error codes on the inverter, or audible/visual signs of distress in the pack. Discharge any fault reporting to a qualified technician rather than resetting and cycling the system.
FAQ
How much usable capacity does a typical used Leaf pack have?
The source thread does not state the capacity of offpist's pack. As a general principle across the EV-repurposing literature, used packs commonly retain around 70–80% of their original capacity, which is generally adequate for stationary storage.
Can I use my existing off-grid inverter with a Leaf pack?
Only if the inverter's DC input voltage window and configurable SOC thresholds are compatible with NMC chemistry. Inverters pre-set for LiFePO4 will mismanage the pack. Always confirm against the inverter's documentation before connecting.
Is a BMS really necessary?
Yes. Lithium-ion packs require a BMS to manage SOC limits and prevent over-charge and over-discharge. Without one, the pack is unsafe for any stationary use.
Are Leaf cells safe in hot climates?
NMC cells are more thermally sensitive than LiFePO4. In hot conditions, ensure the enclosure is shaded or insulated and that forced or adequate passive ventilation is provided. Do not locate the pack in direct sun.
Where do Australian buyers source wrecked Leafs?
Local salvage auctions such as Pickles or Manheim are the typical channels. The forum source suggests Copot (sic) UK, which is not an Australian option; specific Australian availability was not verified in the source.
What was the price paid for a wrecked Leaf in the source material?
The verified figure is the 2014 San Francisco Craigslist listing referenced by viethoc: a wrecked 2013 Leaf with a "new" battery at US$6,500. No comparable Australian figure is provided.
Sources
- MyNissanLeaf forum thread "Use of Nissan Leaf battery in Solar installation": https://mynissanleaf.com/threads/use-of-nissan-leaf-battery-in-solar-installation.17879/page-3

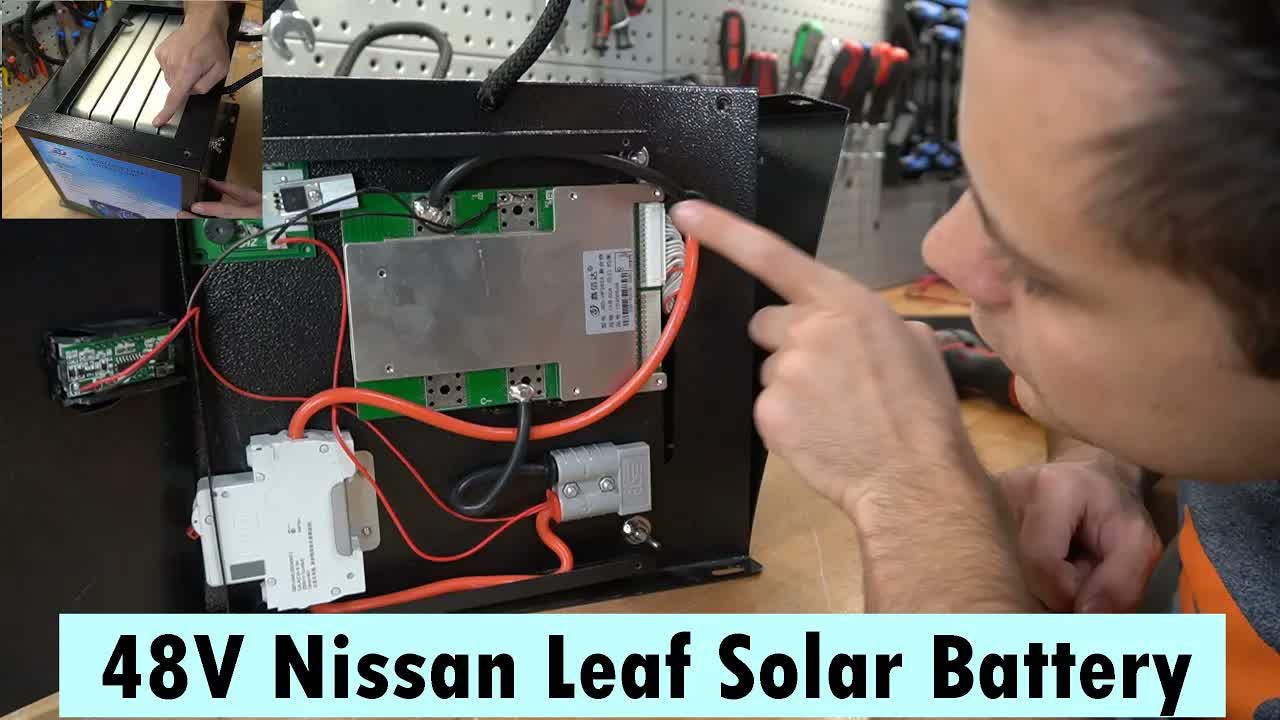

Worth a watch: 48V Nissan Leaf -Used Cell- Solar Battery Pack · DIY Solar Power with Will Prowse
Frequently asked questions
Are used Nissan Leaf battery modules worth using for a 48V off-grid solar setup?
Repurposed Nissan Leaf modules can form the basis of a capable 48V off-grid battery bank, and that's what the review goes through. That said, they're not a drop-in solution — you've got to deal with the BMS challenge and how used cells behave under load. I've also seen what central QLD heat does to a pack that isn't managed properly.
Can a 48V Nissan Leaf pack actually run a shed pump without the voltage sagging?
I had a 48V pack of Nissan Leaf cells sag to 30V under a shed pump, so sag is a real issue with used modules. The cells often have plenty of capacity left, but that voltage drop under load catches a lot of people out. That's exactly why I wrote the review — to show what actually happens once you load these packs up.
Do I need a special BMS for used EV battery modules?
Yeah, the BMS challenge with used EV modules is one of the main things I cover. A generic BMS off the shelf usually isn't enough because the cells have aged differently and need proper balancing and monitoring. Get that part wrong and you'll cook your pack long before the cells are actually flat.
Is it cheaper to repurpose old Leaf cells or just buy new LiFePO4?
That's the whole point of the cost comparison section — it comes down to what you're valuing. Used Leaf modules are cheaper upfront, but new LiFePO4 comes with a known lifespan and the BMS side already sorted. I'd rather spend a bit more than end up with a pack that sags under a shed pump, but every setup's different.
