Off-Grid Solar for a Container Home: Complete Install Guide

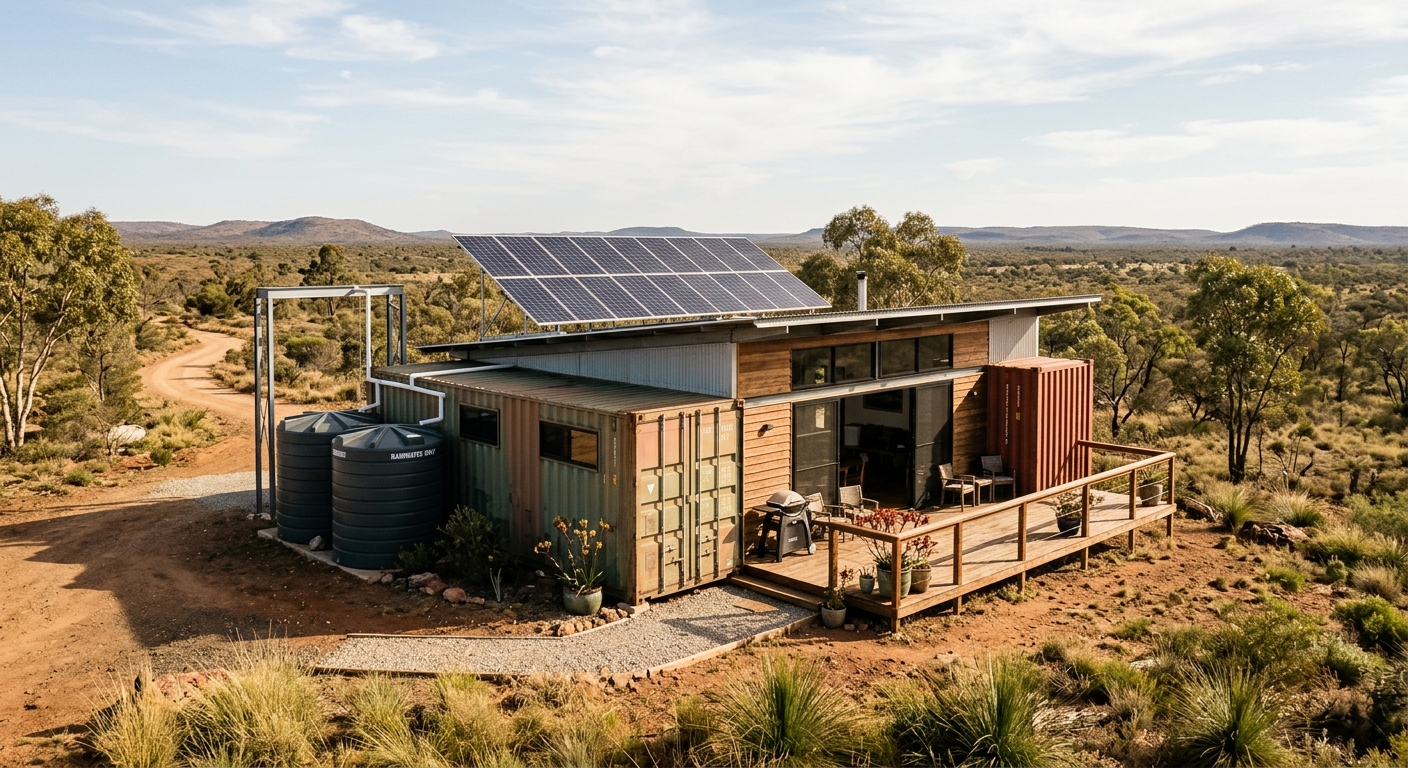

An off-grid solar system on a shipping container is one of the more practical ways to put a livable footprint on a remote block. The container gives you structure, security, and a flat roof to mount on. The solar gives you light, refrigeration, water pumping, and — depending on size — air conditioning. This guide walks through what the system actually is, how to size it, what's involved in mounting it to a container, and where the safety lines sit in Australia.

What "off-grid solar" actually means

An off-grid solar system operates entirely independent of the utility grid. The owner is 100% responsible for their own power needs — there's no ability to pull extra electricity from a retailer if the batteries go flat on a cloudy week. This is the core difference from a grid-tie system, and it shapes every component choice downstream.

Solar panels convert sunlight into DC power. In an off-grid system that DC needs to be stored in batteries and then converted to AC for normal appliances. Most grid-tie inverters are not configured to connect to a battery bank, which is why off-grid systems use components specifically rated for off-grid use. In Australia, those components still need to comply with AS/NZS 5033 (PV array installation) and AS/NZS 3000 (wiring rules), and the finished installation needs sign-off by an accredited installer in most states.

System architecture in plain terms

A complete off-grid solar system for a container home has six functional blocks:

1. PV array — solar panels on the container roof (or on a ground frame next to it).

2. Mounting structure — rails, brackets, and clamps fixed to the container's roof corrugations.

3. Combiner / isolators — per-string fuses or DC breakers consolidating array output.

4. Charge controller — MPPT unit regulating panel voltage into the battery bank.

5. Battery bank — deep-cycle lithium (typically LiFePO4 at 48V) sized for one night's autonomy.

6. Inverter/charger — converts DC battery power to 230V/50Hz AC for the house circuits.

7. Monitoring — a GX-type device with a remote portal (e.g. Victron VRM) for live data.

Server-rack LiFePO4 packs at 48V (a 16S configuration) are a legitimate form factor with short cable runs and modular scaling. Multiple packs parallel cleanly for capacity expansion.

A real-world reference build documented publicly is the Tiny Shiny Home 3 kW system: 3,000 W of panels in a 6S2P configuration, 5 kWh of SOK LiFePO4 rack batteries at 48 V, a 3,000 W single-phase 120 V inverter with 6,000 W surge, and a Victron GX device for remote monitoring. That system powers a 12.2 m (12.2 m) shipping container running lights, fans, fridge, water pump, and a mini-split air conditioner. The same authors have a larger prior DIY install with 10 kW of solar, 28 kWh of lithium storage, and 5,000 W of 120 V AC output.

Note that the reference build above is 120 V (US). For an Australian container home at Beecher, Central Queensland, the inverter would be specified for 230 V / 50 Hz to match local appliance supply.

Sizing the PV array to the container

Standard solar panel dimensions are useful here:

• 60-cell and 120-cell panels: approximately 1.07 m × 1.68 m (1.07 m × 1.68 m). The 120-cell variant uses half-cut cells.
• 72-cell and 144-cell panels: approximately 1.07 m × 1.98 m (1.07 m × 1.98 m). The 144-cell variant uses half-cut cells.

A 6.1 m (6.1 m) shipping container has a rooftop area of roughly 14.4 m² (14.4 m²). That typically accommodates 6 to 12 standard panels, producing around 1.8 kWp to 3.6 kWp with 300 W panels, or up to 4.8 kWp with twelve 400 W+ panels.

A 12.2 m (12.2 m) container provides approximately twice the roof area of a 6.1 m (6.1 m) unit and can theoretically hold about twice the number of panels and twice the output. Practical factors — structural integrity of the roof corrugations, panel orientation, maintenance access, and wind resistance — usually limit this somewhat.

One colourful aside: a 12.2 m (12.2 m) high-cube gives you the same roof footprint as a 6.1 m (6.1 m) standard but with extra interior headroom. For solar yield it doesn't change a thing — watts per square metre of panel is what matters.

Orientation

For best sunlight exposure in the Southern Hemisphere, position the container with its long sides running east-west so the broad roof faces north. Avoid shaded areas and account for the lower winter sun angle when laying out string positions.

Monocrystalline vs polycrystalline

Monocrystalline panels are slightly more efficient than polycrystalline panels but cost a bit more. Both produce power equally well per panel, though an array of poly panels takes up more roof space for the same output. For a roof-limited container, mono is usually the right call.

MPPT vs PWM

Modern MPPT (Maximum Power Point Tracking) charge controllers allow standard 60/120-cell or 72/144-cell mass-produced panels to be used in off-grid applications, making the older "off-grid panel" standard largely outdated. MPPT also outperforms PWM on high-voltage arrays by converting excess PV voltage into additional charging current. There's no realistic case for PWM on a container home in 2026.

Mounting panels to a container roof

Solar panels can be mounted on shipping container roofs, and this is increasingly popular as panels become lighter, more affordable, and interest in renewable energy grows. The key constraints are mechanical, not electrical:

• The mounting frame must be strong enough to handle added weight, wind resistance, and any movement of the structure.
• The structural integrity of the container roof itself must be considered — corrugations carry load in a specific direction and a roof that's been cut for a container home loses stiffness.
• Common motivations include powering off-grid container homes, portable site offices in hard-to-reach locations, and agricultural uses such as irrigation pumps, greenhouses, or cold storage.

The usual approach is a clamp-based system that grips the container's corner castings or corrugation peaks without penetrating the roof skin. Penetrations are sometimes necessary for cable glands, and any penetration must be sealed and supported by an AS/NZS 5033-compliant mounting point.

Battery sizing for one night's autonomy

Off-grid solar systems use deep cycle batteries designed to be discharged and recharged gradually. Solar batteries are typically sized to cover one night's energy usage and recharge from solar during the day, completing one charge/discharge cycle per 24-hour period.

To work out your bank:

1. List every load you expect to run overnight (fridge cycle, fans, lighting, phone charging, any overnight comms gear).

2. Add watt-hours, multiply by 1.2 for inverter losses and wiring losses.

3. Divide usable capacity by 0.8 if LiFePO4 (you should not regularly discharge below 20% State of Charge).

4. Round up to the next standard rack pack.

Rack batteries being stackable for capacity expansion is technically true for the major brands (Pylontech US series, BYD B-Box, and similar). Pylontech, BYD and similar talk natively to a Victron Cerbo GX over CAN bus with the right GX firmware — this is how a Victron Cerbo GX with VE.Direct and VE.Bus ties the inverter/charger and MPPT charge controllers into a single monitoring picture via VRM (Victron Remote Monitoring).

Cable runs, switching, and earthing

Worth keeping from best practice:

• Cable from the array to the charge controller via a combiner box with per-string breakers is good practice under AS/NZS 5033.
• Series-parallel configuration does improve morning/afternoon production versus pure series — generally correct, because the parallel half keeps producing while the series half is partially shaded.
• Snail trails (the silver-bronze discolouration creeping across panel surfaces) are widely studied; the correlation with backsheet/EVA degradation is real. Inspect any used panels carefully.
• MC4 connector inspection on used panels is the correct check — UV-cracked housings and burnt contacts are common failure points.

For earthing in Central Queensland's often-dry, low-conductivity soils:

• A Ufer (concrete-encased) electrode is appropriate in low-conductivity soils and is recognised in NEC 250.52 — Australian equivalents follow AS/NZS 3000.
• Multiple earth rods spaced at ≥ rod-length apart improves dissipation resistance in tough soil.
• The AS/NZS 3000 maximum earth resistance figure is the relevant compliance number for sign-off.

When to call a licensed professional

This is not an optional section.

• All AC wiring in Australia must be performed or at least certified by a licensed electrician, and grid-interactive or stand-alone power systems generally require accreditation (e.g. CEC accreditation for the designer/installer) for sign-off and insurance.
• Battery DC cabling at 48 V and hundreds of amps is genuinely dangerous. A short across a LiFePO4 bank can deliver thousands of amps and start a fire that water won't put out.
• Roof work on a container at height, near DC voltages up to 150 V or more, is a fall-and-shock risk that warrants a second person and proper isolation.
• Any mains connection or inverter/charger commissioning that interacts with the 230 V house wiring.
• Structural modifications to the container (cutouts for windows/doors) affect the roof's load-bearing behaviour for panel mounting.

If you are not licensed and accredited for the specific work, do not do it. The published reference build referenced in this article is explicitly disclaimed by its authors: they are not electricians, and all electrical work should be performed by qualified individuals in accordance with local electrical codes.

Frequently asked questions

How many solar panels can fit on a 6.1 m (6.1 m) container?

Typically 6 to 12 standard panels, producing roughly 1.8 kWp to 3.6 kWp with 300 W panels, or up to 4.8 kWp with twelve 400 W+ panels.

Can I run an air conditioner off a container solar system?

Yes — the reference 3 kW / 5 kWh system runs a mini-split AC alongside lights, fans, fridge, and water pump. Sizing needs to account for the AC's start surge (often 2–3× run wattage) and daily kWh draw.

Do I need special panels for off-grid?

No. Modern MPPT charge controllers allow standard 60/120-cell or 72/144-cell mass-produced solar panels to be used in off-grid applications.

What battery voltage is standard?

48 V is the de facto standard for serious off-grid systems, with LiFePO4 cells arranged 16S. Lower voltages (12 V / 24 V) exist for tiny systems but suffer heavier cable losses at any meaningful power level.

How long will the battery bank last overnight?

That's a sizing question. A 5 kWh LiFePO4 bank at 80% usable capacity gives 4 kWh overnight — roughly enough for a fridge, LED lights, a fan, and phone/laptop charging for a household of two.

Can I expand the system later?

Yes. Rack-format LiFePO4 packs parallel cleanly for extra capacity. PV arrays can be expanded provided the charge controller and inverter have headroom.
