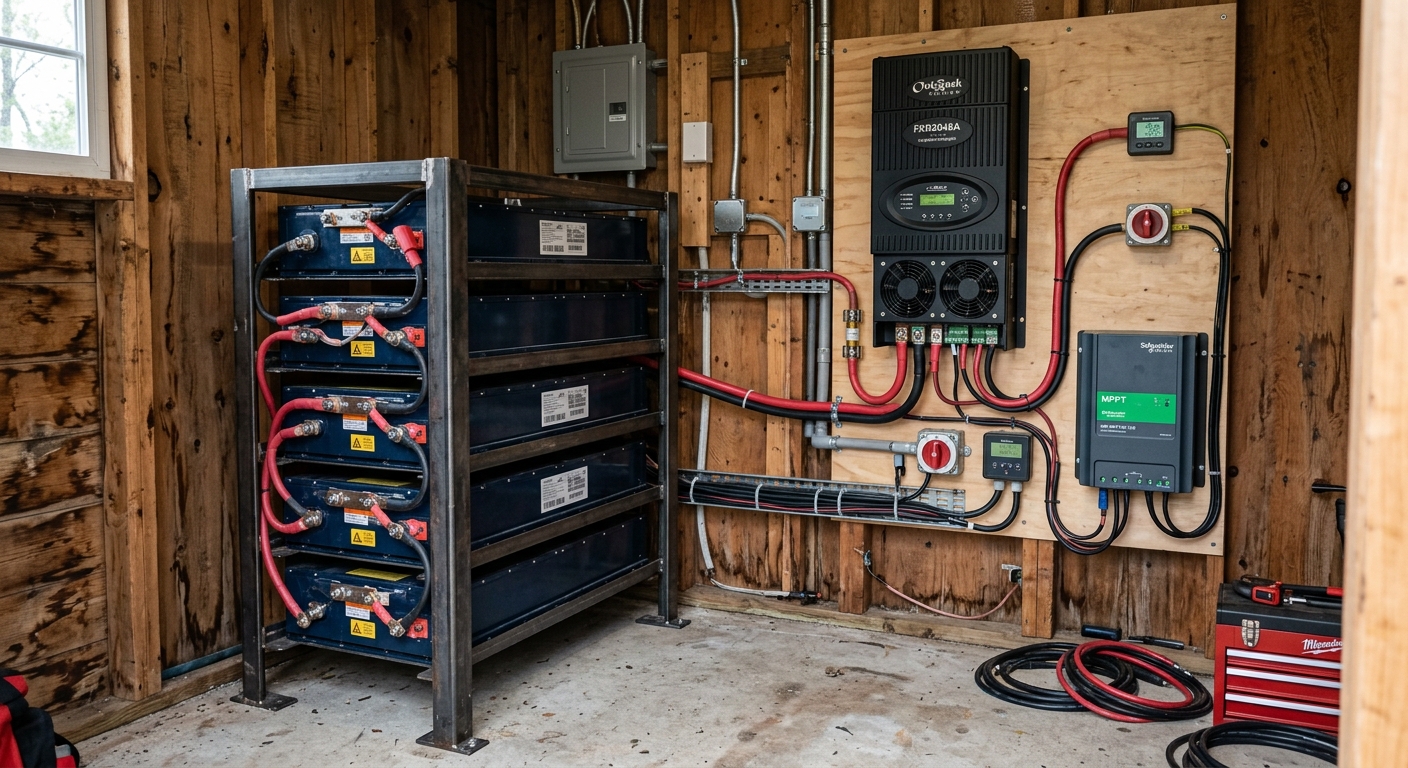

How to Connect EV Battery Packs to a Hybrid Inverter

Connecting EV battery packs — most commonly retired Nissan Leaf modules — to a hybrid inverter is a legitimate path to high-capacity, low-cost DC storage for off-grid solar. The catch is that EV packs are not drop-in "12V leisure battery" replacements. They arrive at high-voltage DC (Nissan Leaf whole packs nominally ~360V for 24/30/40 kWh generations and ~400V for the 62 kWh pack), ship with their own CAN bus language, and pack enough fault energy to be lethal. This guide covers what a hybrid inverter actually does, why EV packs need a different wiring approach, the compatibility checks that matter, and where the boundary sits between DIY and a licensed sparky.

What a Hybrid Inverter Actually Does

A hybrid inverter combines a solar inverter and a battery inverter in a single unit, managing power flow between the PV array, the battery bank, and either the grid or the AC loads. Modern units route PV through their own MPPT input, not directly into the battery, and typically allow PV array oversizing of 1.3× to 1.5× the inverter's nameplate rating.

For 48V LFP systems specifically, the inverter's continuous output (kW) must be matched to the peak AC load, and its max charge current must stay within the battery BMS limits. The surge rating must cover the largest motor start, typically 2–3× the running watts.

Why EV Packs Are Different From "Solar Batteries"

An EV traction pack is a string of large-format cells (older Leaf packs are LMO/NMC chemistry; later Leaf packs use NMC; some other EV packs are LFP) managed by a factory BMS. The Nissan Leaf pack contains its own BMS, contactors, and thermal management hardware that operate autonomously — the pack's internal BMS enforces cell-level protection and contactor disconnect regardless of what any external device is doing. CAN bus is the native communication protocol for Nissan Leaf packs, which is convenient because most modern hybrid inverters also speak CAN.

The three structural differences that matter to an installer:

• Voltage. EV packs live at high DC voltages. Nissan Leaf whole-pack nominals are ~360V (24/30/40 kWh: 96S2P for 24 kWh, 96S for 30/40 kWh) and ~400V for the 62 kWh pack; individual 4S Leaf modules are ~14.8V nominal. Most hybrid inverters expect a 48V battery bank. A mismatch is a hard fault, not a soft one.
• BMS autonomy. The pack's internal BMS decides when contactors open and continues to enforce cell-level protection regardless of external communication. Loss of CAN removes SOC reporting and external control/optimisation — it is not a loss of the "safety brains." If the inverter can't read CAN, it simply loses visibility, not protection.
• Energy density. A single Leaf pack holds around 24 kWh. A fault current or arc at that energy level is a serious incident — not a "weld the spanner to the busbar" joke.

Compatibility Matrix: What Has to Match

Before any cable is cut, five numbers have to line up. None of them are optional.

Pairing a 12 kW hybrid inverter with a single 100 Ah LFP battery rated for 100 A continuous discharge (~5 kW) is a known failure mode: voltage sag warnings, BMS-triggered shutdowns, and premature cell wear are the predictable outcomes. The same logic applies — at much higher voltages and currents — when an EV pack is wired into a 48V inverter without a DC-DC converter in between.

The Voltage Problem (and the Two Real Solutions)

Because EV packs run at voltages that don't match a 48V inverter input, you have two legitimate paths — and they are not equivalent. They differ in inverter selection, charge profile, fusing, isolation strategy, and BMS protocol handling. Treat them as distinct topologies, not interchangeable routes.

1. Use a DC-DC buck/boost converter. The converter takes the pack's native voltage (say, 360V) and presents the inverter with a stable 48V battery bus. Only an isolated DC-DC converter (transformer-coupled) provides galvanic isolation between the high-voltage EV pack and the inverter-side 48V bus; a non-isolated buck/boost references the high-voltage side to the low-voltage side and does not isolate, which is a lethal shock hazard when working on either side of the link. Confirm the converter's isolation voltage rating is appropriate for the pack voltage before relying on it for safety. The EV BMS still manages the pack; the inverter sees a normal 48V source. This is the most common DIY route for 48V inverters.

2. Use a high-voltage hybrid inverter. A growing number of newer hybrid inverters (often marketed for "EV battery direct" use) accept high-voltage DC input in the 100V–500V range. The catch: "speaks CAN natively to Leaf packs" is not universal. Only a handful of models — some Sungrow, SolaX, and Growatt HV units, for example — ship with manufacturer-verified, tested Leaf CAN profiles. Most HV inverters need a translator board (an ESP32-based DIY bridge is the common community solution) or a firmware profile the vendor has actually validated against a Leaf pack. Verify the specific model's datasheet and supported battery list before you buy; do not assume CAN support means Leaf support.

In both cases, the battery-bank voltage rule still applies: the voltage the inverter sees at its battery terminals must match the inverter's spec. Beyond that, the DC-DC path and the HV-inverter path have different math — different inverter selection, different charge profile, different fusing, different isolation requirements.

Sizing the Pack to Your Loads

Battery capacity is measured in Ah for lead-acid and in kWh for lithium — useful battery kWh should be greater than or equal to average outage duration multiplied by average load during outage. Lithium systems should typically be sized for a minimum of two days of autonomy; less efficient lead-acid banks need three or more.

Sizing has to account for inverter losses, temperature derating (for lead-acid), maximum depth of discharge, and round-trip efficiency. Solar array sizing on the same system has to account for local peak sun hours, shading, panel orientation and tilt angle, cable losses, and temperature derating — and a string voltage calculator should be used to verify that maximum and minimum string voltages stay within the inverter's MPPT input rating.

For a Central Queensland site like Beecher, peak sun hours are generous (typically 5.5+ equivalent full-sun hours/day), so array oversizing between 1.3× and 1.5× the inverter rating is usually achievable without wasting panel real estate.

The CAN Bus Question

CAN bus communication is the native protocol for Nissan Leaf packs, which is why "Leaf + hybrid inverter" is the most documented DIY pairing. The question isn't whether the inverter speaks CAN; it's whether it speaks the Leaf dialect — and whether that profile is manufacturer-tested, not just claimed in marketing copy.

If the inverter can't interpret the pack's CAN messages, you lose:

• State of charge reporting
• External charge/discharge optimisation commands
• Thermal management handshakes
• External visibility of per-cell voltages

The pack's internal BMS still enforces cell-level voltage protection, cell balancing, and contactor disconnect regardless of the CAN link. Loss of CAN is a loss of visibility and external control, not a loss of the safety systems inside the pack.

Safety: When to Call a Licensed Professional

High-voltage DC work is dangerous and is regulated in Australia under AS/NZS 3000 (Wiring Rules), AS/NZS 5033 (PV arrays), AS/NZS 4777.1 (grid connection of inverter energy systems), and AS/NZS 5139 (battery installations). Specifically:

• Solar and battery storage systems should always be installed by a licensed electrical professional in accordance with AS/NZS 3000, AS/NZS 5033, AS/NZS 4777.1, and AS/NZS 5139.
• Verify inverter voltage matches battery bank voltage (12V with 12V, 24V with 24V, 48V with 48V) before making any connections.

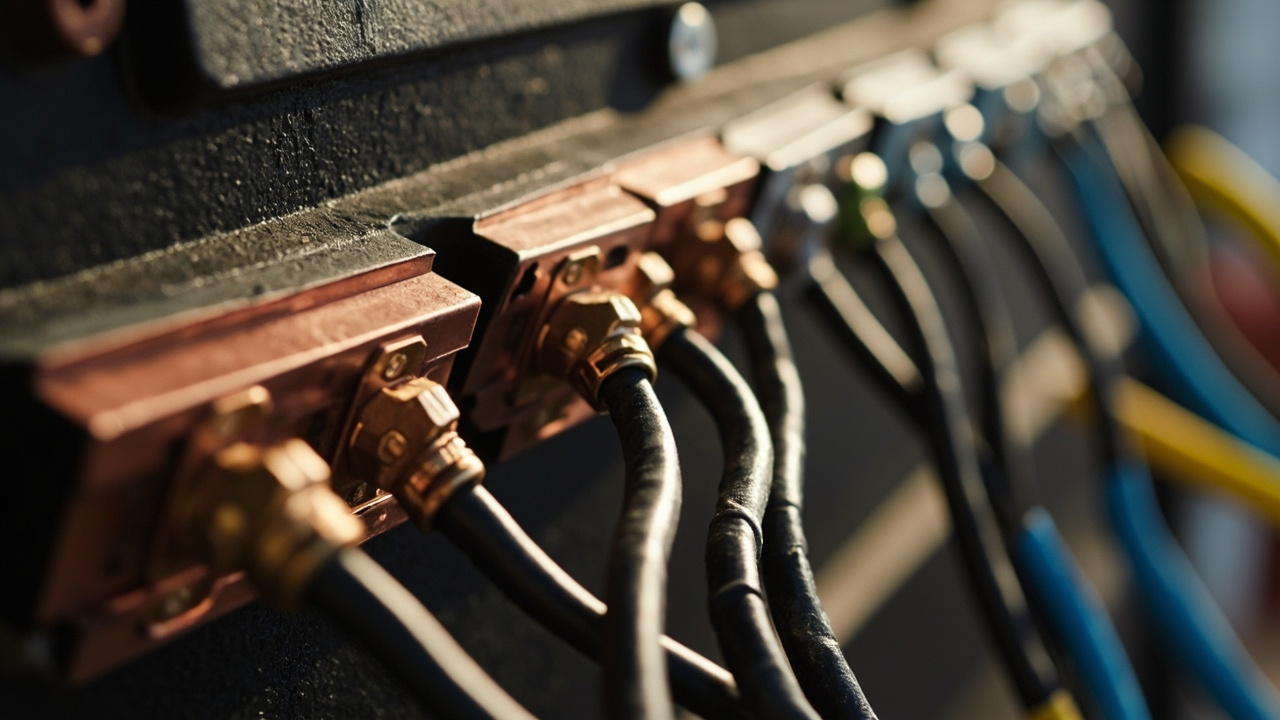

• Confirm fuse rating, cable length, BMS discharge limits, and use DC-rated cable sized for the string's maximum continuous and fault current per AS/NZS 3000 and AS/NZS 5139. Never use twin-and-earth for battery interconnects; at 360–400V DC, undersized or AC-rated cable is a fire risk.
• Use a string voltage calculator to ensure string voltages stay within the inverter's maximum and minimum input ratings.
• Account for inverter losses, temperature derating, maximum DoD, and round-trip efficiency before locking in the design.
• Always pre-charge the inverter's internal DC bus through a pre-charge resistor before closing the main contactor. Connecting a charged EV pack to a discharged inverter bus without pre-charge produces a massive inrush current that will trip BMS protection or weld contactors. Most HV-inverter setups require a dedicated pre-charge circuit.

In Queensland, any work on a fixed-wiring solar/battery system that connects to 230V/50Hz mains — or feeds a habitable dwelling's 230V circuits — must be done (or at least signed off) by a licensed electrician. The mechanical assembly of a battery box in a shed that is not yet energised is a grey zone; the moment DC from an EV pack enters the picture, treat it as licensed work under AS/NZS 3000 and AS/NZS 5139. The packet is dense, and an improper inverter–battery match can lead to inefficiency, reduced battery life, or system failure — the light version of that sentence is "wasted money"; the heavy version is "thermal event."

If the pack is physically damaged, has been stored below 0 °C and not warmed, shows a BMS error light, or has any cell below the chemistry-specific lower limit, stop. For NMC (early and most Leaf packs): 2.5V/cell is the operating floor; cells below 2.0V have likely suffered copper dissolution and many BMS units will permanently disable the pack — do not attempt recovery, send it to a specialist or recycler. For LFP: 2.0V/cell is the typical lower limit; below that, professional recovery or recycling is required. Either way, a pack sitting at or below its chemistry-specific floor should not be cycled into a hybrid inverter.

Pre-Connection Checklist

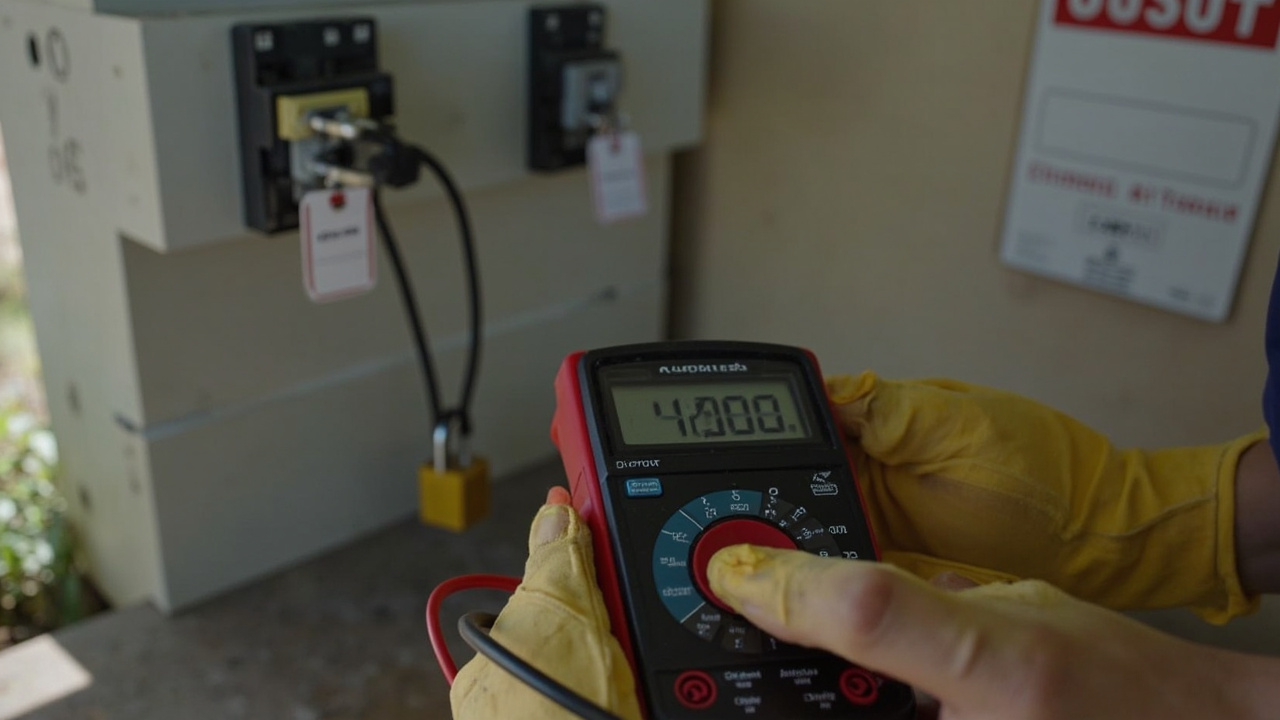

1. Confirm pack voltage with a calibrated multimeter, not the dashboard.

2. Confirm the BMS is functional and contactors actuate on a low-voltage bench supply.

3. Confirm CAN messages are present on the pack's diagnostic port while idle.

4. Confirm the inverter's battery input voltage window covers the converter's (or direct pack's) output range.

5. Confirm fuse rating, cable length, BMS discharge limits, and that all battery interconnect cable is DC-rated and sized for maximum continuous and fault current per AS/NZS 3000 and AS/NZS 5139.

6. Confirm the inverter's continuous output is less than or equal to the battery's max continuous discharge (in kW, after conversion losses).

7. Confirm PV string voltages with a string voltage calculator before connecting the array.

8. Confirm a pre-charge resistor / pre-charge circuit is wired between the pack and the inverter bus before any contactor closes.

FAQ

Do I really need a DC-DC converter, or can I run a 360V pack straight into a 48V inverter?

You cannot. The inverter's battery input is hard-rated to a specific voltage window; feeding 7× that voltage will destroy the input stage. Either use a DC-DC converter (isolated, rated for the pack voltage) to step the pack down, or use a high-voltage-input hybrid inverter rated for the pack's native voltage.

Can a Nissan Leaf BMS and a hybrid inverter really talk to each other?

CAN bus is the native protocol for Nissan Leaf packs, but "speaks CAN" and "speaks Leaf CAN" are not the same thing. Verify the inverter manufacturer publishes a tested, manufacturer-supported Leaf CAN profile — check the supported battery list and firmware release notes — before you buy. If no verified profile exists, plan on a translator board.

What's the realistic capacity I can pull from a Leaf pack?

The pack's nameplate kWh is its gross capacity; usable capacity is limited by the BMS's depth-of-discharge setting and round-trip efficiency. A 24 kWh Leaf pack typically yields 20–22 kWh usable. Lithium systems should be sized for a minimum of two days of autonomy, so on its own a single Leaf pack is more of a buffer than a multi-day reserve.

Why does the inverter's surge rating matter for an EV-battery system?

Surge rating must cover the largest motor start, typically 2–3× the running watts. EV packs can deliver very high peak currents, but only if the BMS permits them — confirm with the BMS spec, not assumed from the cell datasheet.

Is this legal to wire myself in Queensland?

For a domestic installation connected to 230V/50Hz circuits, the wiring work itself must be done by a licensed electrical professional in accordance with AS/NZS 3000 and AS/NZS 5139. The build of an isolated, unenclosed battery skid in a workshop is a different question — but the moment it ties into a fixed-electrical system, treat it as licensed work.
