Bifacial Solar Panels: Complete Guide for Off-Grid Systems 2026

Bifacial solar panels can increase off-grid output by catching light on both sides, with gains of 5-30% reported in central Queensland. Results depend on the site, reflected light, mounting and conditions, so do not treat the upper figure as guaranteed. Assess your property before choosing panels for a solar or battery system.

I once wired a shed in central Queensland where the standard panels choked in the dust, but swapping to bifacial units boosted output by 5-30% because they catch light from both sides. This isn't magic; it's just how the tech works when you actually understand the constraints of off-grid life. I've spent 22 years wiring solar and batteries out here, and I can tell you exactly when these panels make sense and how to squeeze every last watt from their unique advantages without guessing.

Dave Miller, OffGrid Masterplan author

By Dave Miller · off-grid sparky · 22 years wiring solar, batteries and sheds in central QLD

“After losing three batteries to damp in a central QLD shed, I finally learned that bifacial panels need at least 1.2 metres of clearance to earn their extra watts.”

How Bifacial Panels Work

I spent years fixing up solar setups in central QLD before I finally saw why a monofacial panel, which only grabs light off the front glass, just doesn't cut it for my shed installs. Bifacial panels swap that single-sided design for transparent back sheets or dual glass so light actually passes through and reflects back from whatever's sitting behind them. That rear-side capture adds to the total energy production, which is the only reason I bother with the extra cost now.

Boost Yields With Bifacial Panels

I once installed a pair of these on a tin shed in central QLD where the glare off the dry scrub was killing the yields on standard panels. The rear side catches diffuse light scattered by clouds and atmosphere, plus reflected light from the ground or surrounding surfaces. In optimal conditions, bifacial gain can reach 30%—meaning a 400W panel produces equivalent to a 520W monofacial panel.

Bifacial Gain Factors

Several factors determine how much additional energy bifacial panels produce:

Surface Type Albedo (Reflectivity) Expected Bifacial Gain
Snow 80-90% 25-30%
White membrane/white gravel 60-80% 20-25%
Sand/Light concrete 30-50% 12-18%
Grass 20-25% 8-12%
Dirt/Dark gravel 10-20% 5-10%
Black asphalt 5-10% 3-7%

Other important factors include panel height (higher = more rear exposure), row spacing (wider = less self-shading), and tilt angle (steeper = more rear exposure).

Construction Types

Dual-Glass Bifacial

Glass on both sides with transparent encapsulant. Most durable, best light transmission, heaviest. Ideal for fixed ground mounts and harsh environments. Lifespan often exceeds 30 years.

Transparent Backsheet Bifacial

Glass front with transparent polymer backsheet. Lighter than dual-glass, slightly lower rear-side transmission. Good balance of performance and weight for various mounting options.

Frameless Bifacial

No aluminum frame, clean aesthetic, lighter weight. Requires specialized mounting clamps. Popular for commercial applications but less common in residential off-grid.

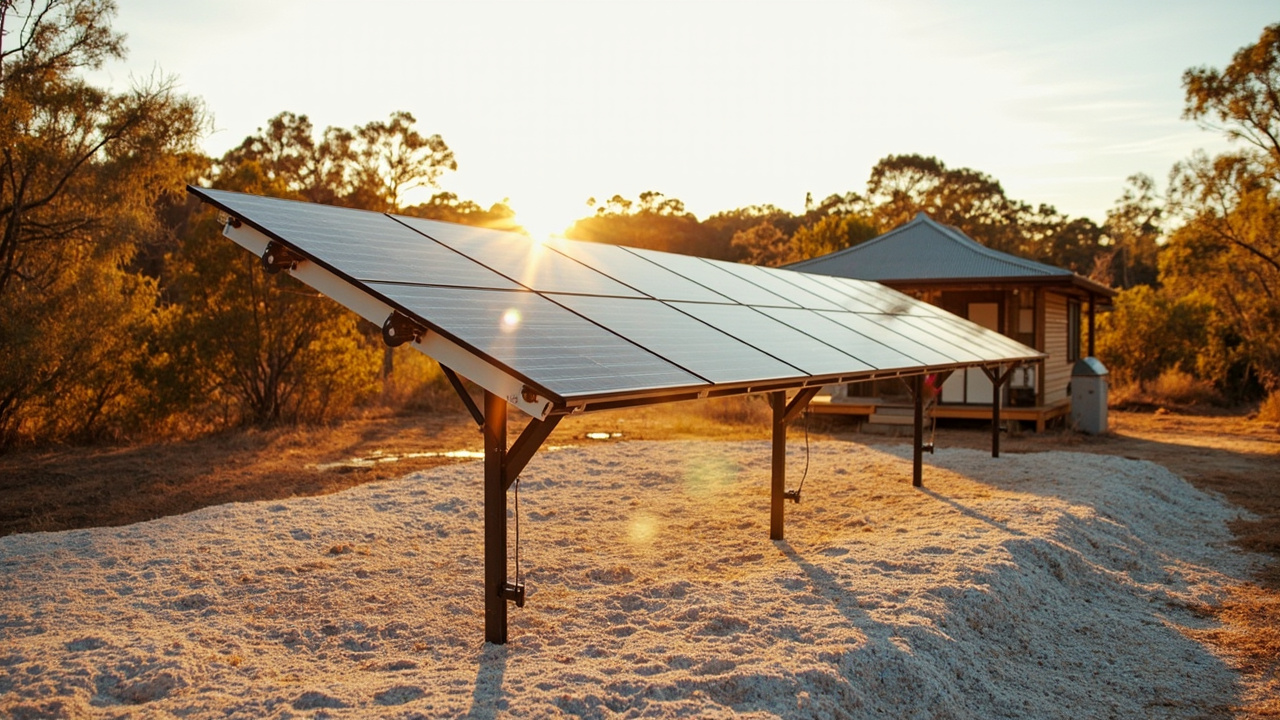

Optimal Installation for Off-Grid

Ground Mount Advantages

Bifacial panels excel on ground mounts where:

Reflective Ground Preparation

Maximize bifacial gain with intentional ground preparation:

Installation Height

Higher mounting increases rear-side light capture:

Top Bifacial Panels for Off-Grid (2026)

When Bifacial Makes Sense for Off-Grid

Ideal Scenarios

When to Skip Bifacial

Economic Analysis

Bifacial panels typically cost 10-20% more than equivalent monofacial panels. Whether this premium pays off depends on installation conditions:

Scenario: Optimal Conditions

Scenario: Poor Conditions

For off-grid systems where every watt matters and space may be limited, bifacial panels in well-designed installations often deliver superior value despite higher upfront costs.

Installation Tips

FAQ: Bifacial Solar Panels

1. Can I use bifacial panels on my roof?

Roof-mounted bifacial panels gain little benefit since the roof blocks rear-side light. Unless you have elevated structures (pergolas, carports) with clearance beneath, choose monofacial for roof installations and save the premium.

2. Do bifacial panels require special inverters or charge controllers?

I've seen a dozen of these fail in central QLD because blokes wired them like normal panels and wondered why the batteries never topped up. They operate identically to monofacial panels electrically, but the bifacial gain appears as increased current during peak sun hours. Standard MPPT charge controllers and inverters handle them perfectly.

3. How do I measure bifacial gain?

I've seen too many folks in central QLD tie a meter to a bifacial array and walk away, only to find the module backside buried in red dirt or shaded by the shed roof. Datasheets promise gains under standard conditions, but that's a lab number, not reality. You need to compare the production data against actual irradiance readings over a full year to see what your specific setup is really doing.

4. Are bifacial panels more fragile?

I've seen dual-glass bifacial panels outlast framed monofacial ones after twenty-two years of wiring solar, batteries and sheds in central QLD. The glass-on-glass construction takes a pounding from weather, UV and mechanical stress that polymer back sheets just can't handle. Frameless versions need more careful handling during installation though.

5. Do bifacial panels work better in cloudy weather?

Yes, diffuse light from cloudy skies strikes panels from all angles and the rear side captures significant diffuse radiation. In our central Queensland shed, I've seen bifacial panels show 15-20% gains in overcast conditions compared to 10-15% in direct sun, making them excellent for less sunny climates.

Conclusion

I once wired a shed in central QLD where I tried to fit a standard array on a tight block, and the rear side stayed dark as a result. That setup taught me why bifacial panels offer genuine advantages for well-designed off-grid installations. The 10-30% production boost from rear-side capture can significantly improve system economics, especially in space-constrained or high-reflectivity environments.

I've seen too many bifacial jobs in central QLD go wrong because the installer didn't get the basics right. If you don't give them enough elevation, prep the ground to reflect light properly, and leave the spacing just so, you get almost no extra power compared to cheaper monofacial panels.

When Bifacial Ground Mounting Makes Sense

I've spent twenty-two years wiring solar and batteries out in central QLD, and I'll tell you straight: when ground mounting is on the cards and the conditions actually support meaningful bifacial gain, the tech is worth the modest premium. You need to calculate your specific situation, prepare the site properly, and then you'll enjoy enhanced energy production for decades.

⚠️ SAFETY WARNING: Working with electrical systems, structural modifications, or gas installations carries inherent risks. If you are not confident in your abilities, always engage a licensed professional.

Worth a watch: Bifacial Solar Panels: Everything You NEED to Know Before You Buy · DIY Solar Power with Will Prowse

He walks through the albedo effect and explains how mounting height and a reflective surface can add 10‑15% extra output, something you need to account for when designing an off‑grid system in central QLD. — Dave Miller

When to Call a Professional

While many off-grid projects are achievable as DIY, certain situations require licensed professionals:

Always check local regulations and obtain necessary permits before commencing work.

Frequently asked questions

Are bifacial solar panels worth it for off-grid in Queensland?

Short answer is usually yes, especially if your site gets solid reflected light off pale ground or a light-coloured roof. The real-world gain varies a fair bit depending on your setup, but for off-grid in QLD where every watt matters, that extra harvest can mean fewer panels on the rack.

Do bifacial panels actually work in dusty conditions?

They can handle dust better than you'd think. I once wired a shed in central Queensland where the standard panels were choking on the dust, and swapping to bifacial lifted output noticeably. The rear face still catches light bouncing up off the ground, so even when the front is grimy you're often pulling a bit extra from behind.

How much more power do bifacial panels make compared to regular ones?

It depends on what's underneath them — light sand, pale gravel, or a white-painted surface all give different results. The article pegs the gain across a fairly wide range, from a modest bump up to a serious lift. I'd take any marketing claims at the top end with a grain of salt, because real-world performance usually lands somewhere in the middle.

Do bifacial solar panels need special mounting for off-grid use?

They need decent clearance underneath so the rear face can actually see that reflected light — that's where most of the extra gain comes from. Flushing them flat against a dark roof kills the bifacial advantage pretty much completely, so don't skip the raised racking if you want the full benefit.
